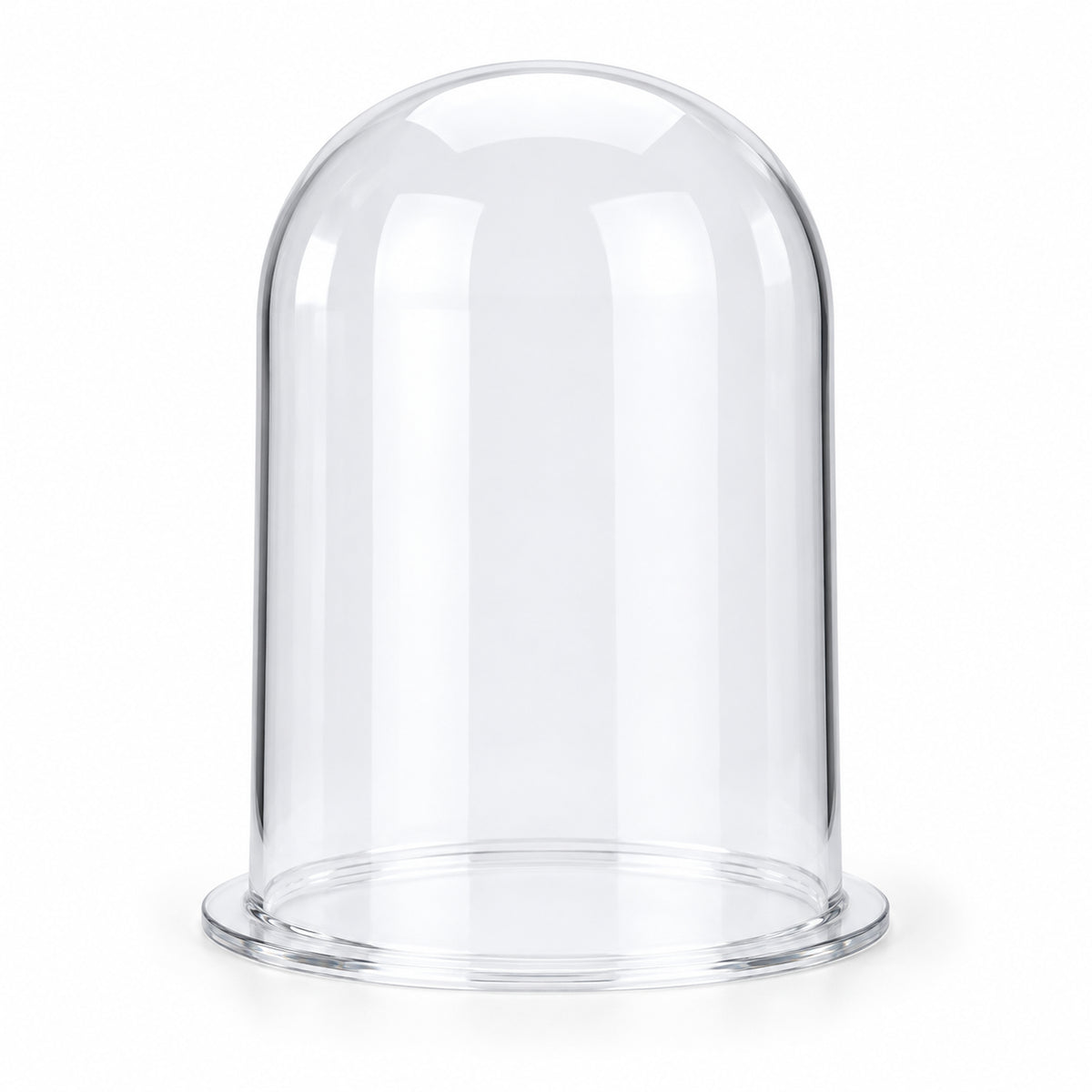

• PHYHOO clear acrylic vacuum hood bell jar with airtight base flange for jewelry casting and investment debubbling machine

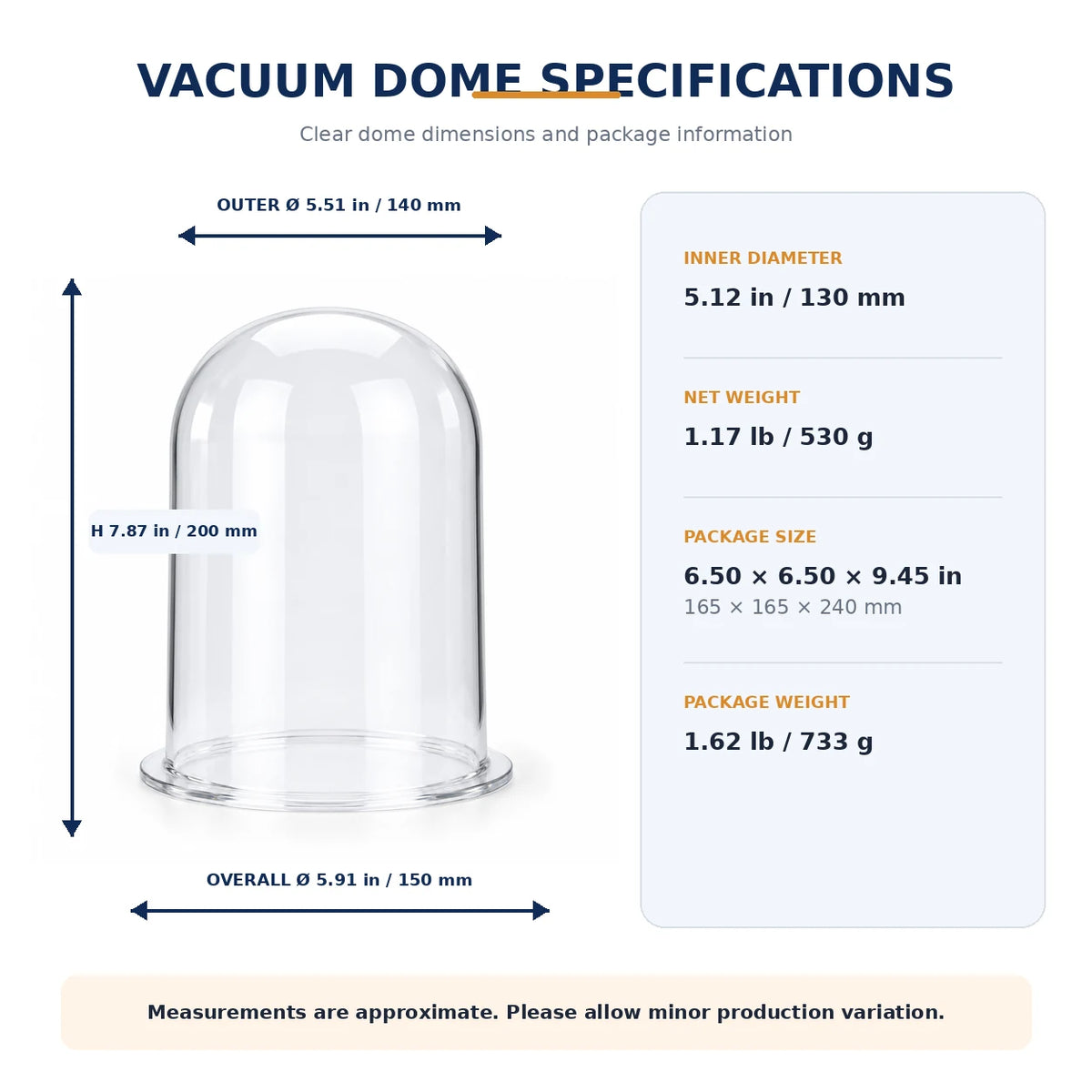

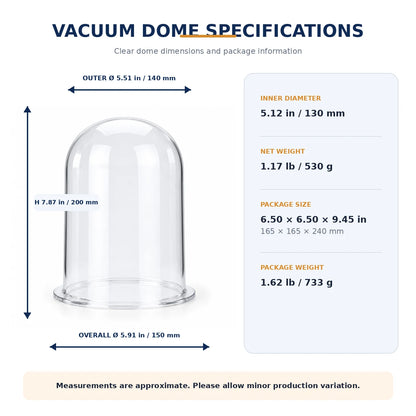

  • PHYHOO clear acrylic vacuum dome bell jar dimensions and specifications for jewelry casting machine - outer diameter 140mm, height 200mm, base flange 150mm

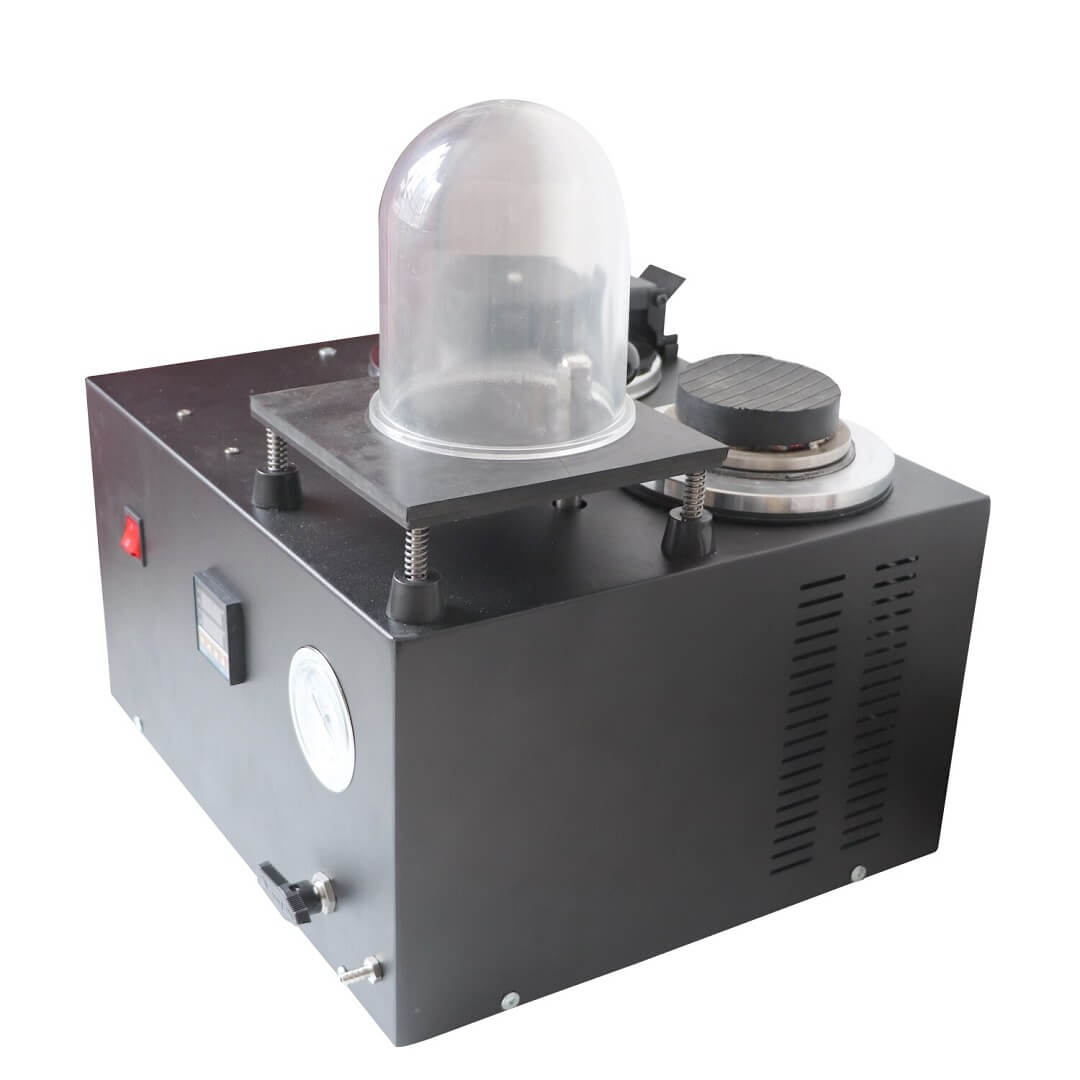

  • PHYHOO clear acrylic vacuum hood bell jar mounted on 3-in-1 jewelry vacuum casting and investment debubbling machine table
1 3

PHYHOO JEWELRY TOOLS

PHYHOO 3-in-1 Casting Machine Vacuum Hood | 140x200mm Acrylic Bell Jar

PHYHOO 3-in-1 Casting Machine Vacuum Hood | 140x200mm Acrylic Bell Jar

998 σε απόθεμα

$74.99 USD
$74.99 USD
Έκπτωση Εξαντλήθηκε
Τα έξοδα αποστολής υπολογίζονται κατά την ολοκλήρωση της αγοράς.
  • 30 Days Returns/Exchange
  • 12-Month Warranty
  • Global Transportable

Heavy-duty transparent acrylic vacuum hood bell jar designed for 3-in-1 jewelry vacuum casting and plaster investment debubbling machines.

Key Features

  • Dedicated 3-in-1 Machine Fit: Tailored for 3-in-1 jewelry casting and melting machines with compatible round sealing pads.
  • Clear 360-Degree Visibility: Thick-walled transparent acrylic lets you clearly observe plaster slurry rising and degassing in real time.
  • Airtight Flanged Base: 150 mm (5.9 in) wide rim seats firmly on rubber or silicone gaskets to hold deep vacuum without air leakage.
  • Compact and Lightweight: 530 g (1.17 lb) net weight makes it easy to lift and position smoothly across multiple casting cycles.

Technical Specifications

Material High-clarity heavy-duty acrylic
Outer Diameter approx. 140 mm / 5.51 in
Inner Diameter approx. 130 mm / 5.12 in
Height approx. 200 mm / 7.87 in
Total Flange Width 150 mm / 5.91 in (including rim)
Net Weight approx. 530 g / 1.17 lb
Package Weight approx. 733 g / 1.62 lb
Package Dimensions approx. 165 x 165 x 240 mm / 6.50 x 6.50 x 9.45 in

Usage Guidelines

Best For Not For
3-in-1 casting machine plaster debubbling and vacuum degassing Positive pressure vessels, autoclaves, or direct torch flame contact
Flasks and mixing bowls fitting within 130 mm (5.12 in) inner diameter Cleaning with alcohol, acetone, or harsh chemical thinners
Care Notice: Use only mild soapy water and a soft cloth for cleaning. Never wipe with alcohol or acetone, as chemical solvents will cloud and craze acrylic surfaces. Ensure vacuum pressure is fully released before lifting.

What's Included

  • 1 x Transparent Acrylic Vacuum Hood Bell Jar (140 x 200 mm)

Support

Questions about casting accessories or order status? Contact the PHYHOO team at phyhootool@gmail.com. We respond within 24 hours on business days.
