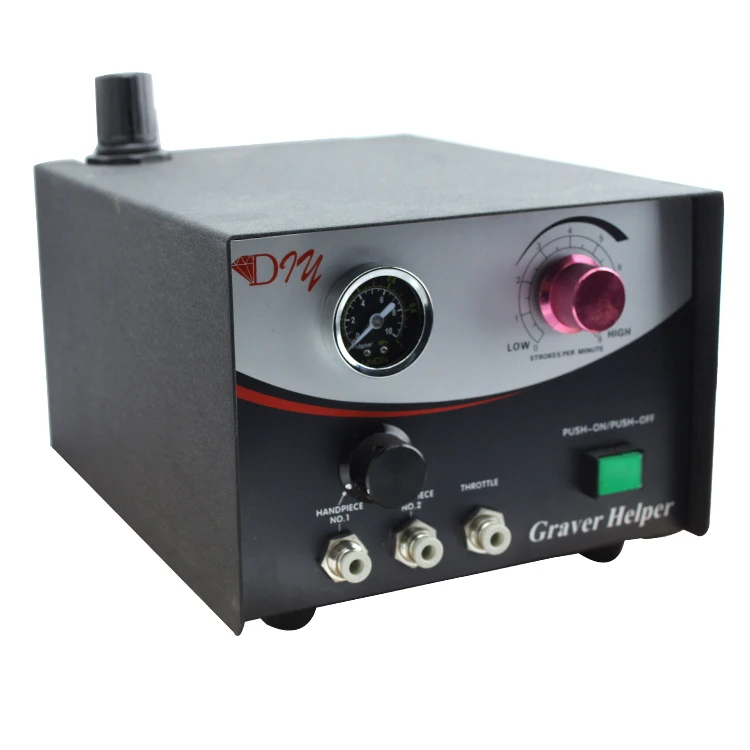

PHYHOO JEWELRY TOOLS Pneumatic Engraving Machine Graver Helper Jewelry Engraver Mate Double Ended 2 Hand Pieces 220/110V

Pneumatic Graver Engraving Machine With 2 HandPieces

Availability: In stock

Regular price $499.99

QUESTIONS & ANSWERS

Ask More Wholesale Prices. (100QTY+)

Be the first to ask a question about this.

Ask Questions

Guaranteed safe checkout:

Installation:

1. Size carved handle. Foot opening panel interface connector.

2. The air compressor trachea insert air intake on the back of the engraving machine, it is recommended that the installation of relief valves and water separation filter, air compressor and engraving machine pipeline to increase machine performance.

Methods of operation

1.Shut down the switch of AIR PRESSURE CONTROL KNOB & AUXILIARY AIR OPEN / CLOSE.KNOB FOR OUTLET BELOW to avoid the damage of pressure gauge and reducing valve due to strong air pressure.

2. After connecting all accessories with the machine, turn on the power .(The indicator light is shine )

3. Put the ON/OFF Switch to Position (1) or (2).

4. Adjust the air pressure and the rotate speed , hold the handpiece like a table knife , step on the foot control to max ,adjust AIR PRESSURE CONTROL KNOB slowly to the gauge show 1.5-2kg meanwhile adjust the STROKES PER MINUTE SELECTOR KNOB , in order to make the impact of handpiece No.1 reach the maximum., then press the AIRPRESSURE CONTROL KNOB.

5. Loose the foot control , the graver handpieces stop working , intall the graver tools into the handpiece.

6. Turn the HANDPIECE SELECTOR KNOB to Switch Handpiece No.1 No.2 .

7. When you using Hnadpiece No.2 –rotate handpiece , shut off the power , turn on AUXILIARY AIR OPEN CLOSE.KNOB FOR OUTLET BELOW to adjust AIR PRESSURE CONTROL KNOB.

8. Step on the foot pedal to control impact.

Maintenance

1. Engraving machine used for a period of time, it should be the back of the machine reducing valve cups drained.

2. To mechanical oil adding an appropriate amount of the 10th size carved handle!

3. If the fault, not blindly demolished, the staff checks and maintenance.

Product information

Voltage:220V,50/60Hz

Rotate Speed:100-4000RPM

Air Pressure:0-3kg/cm²

Package weight: about 8kg

Volume: 32cm x27cm x 25cm
