1. Connecting electrode, black wire to black connection, red wire to red connection.
2. Connect argon gas through argon gas pressure reducing valve, adjust the gas value to minimum.
3. Welding needle can be sharpened by grinding on the grinding wheel, sharp point electricity principle.
4. Needle should be more than 5mm out from the welding connection, the diameter of the needle is 0.1mm.

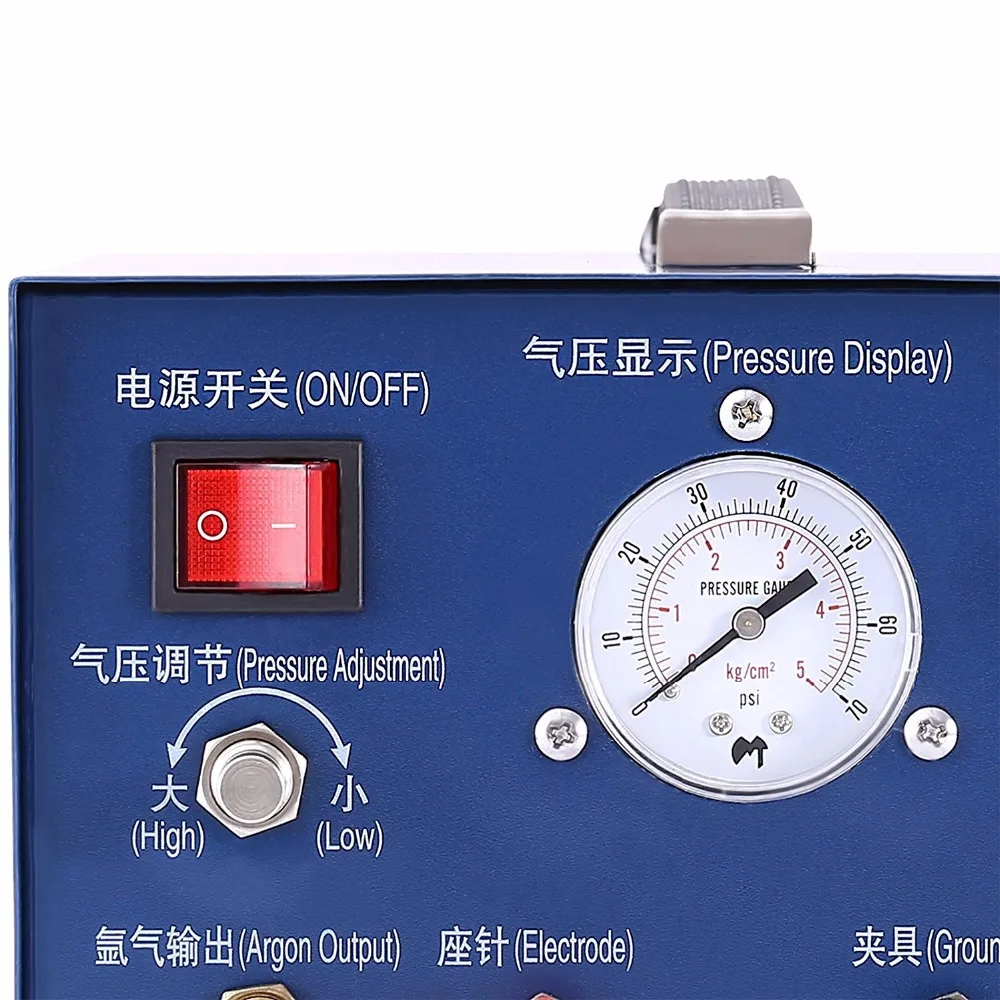

1. Connect to electricity and power on

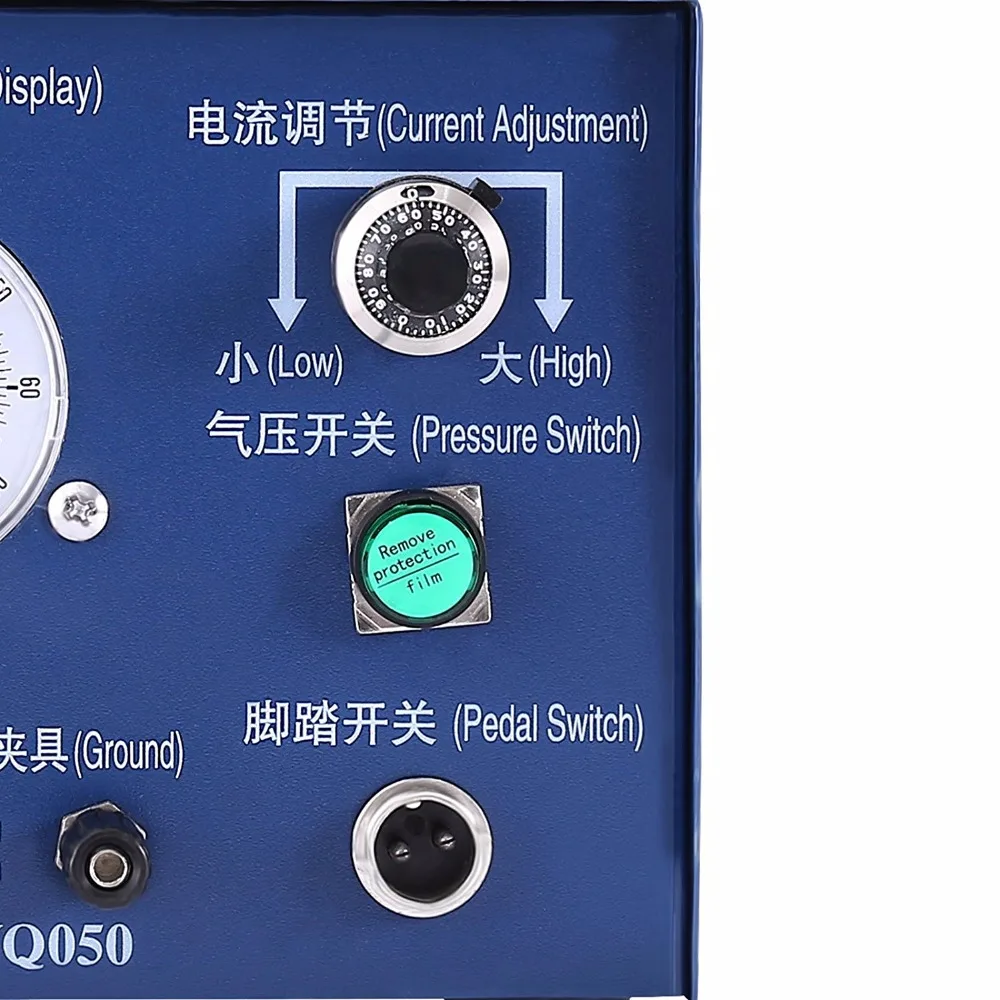

2. Adjust power by turn knob, rough set scale ranges from 1-1.5, accurate scale ranges from 7-8.
3. Clamp the workpiece, the workpiece can not touch the welding needle directly, the distance between them is better than 0.5mm.
4. Step the pedal, then move your feet from it, welding finished.

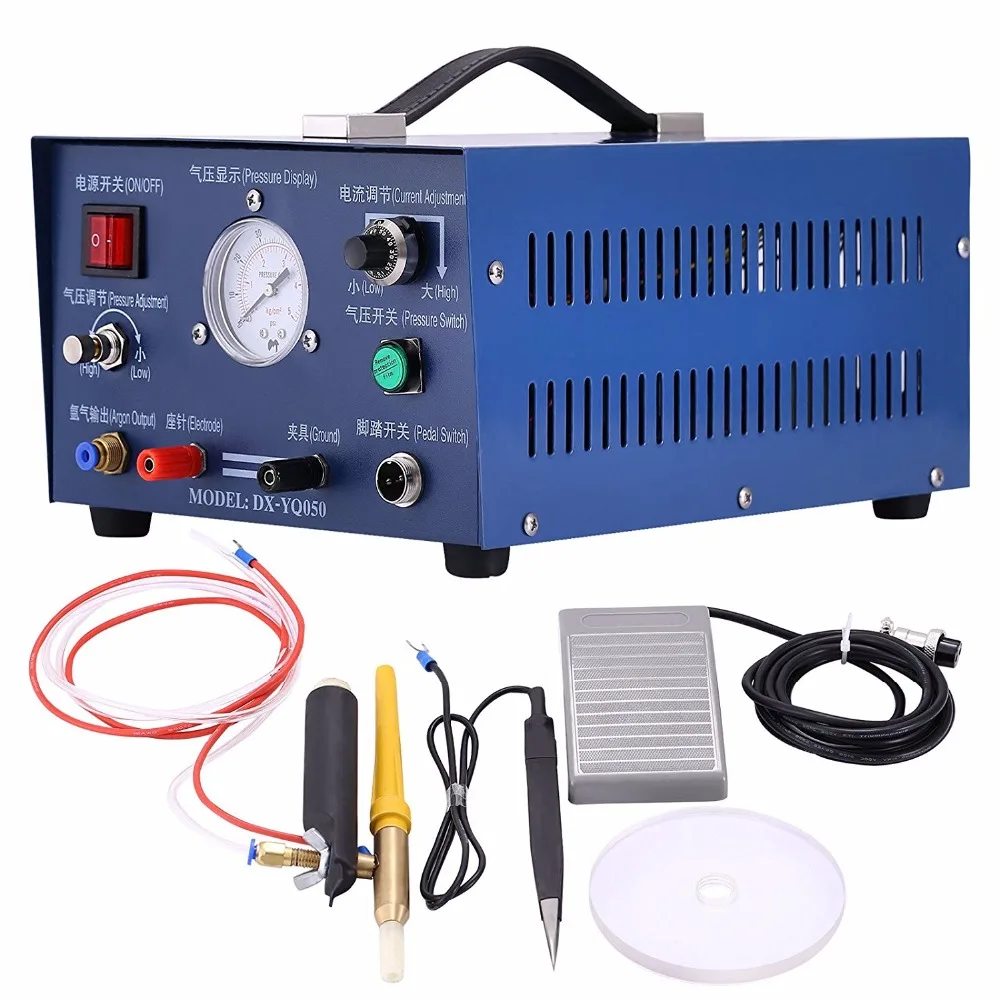

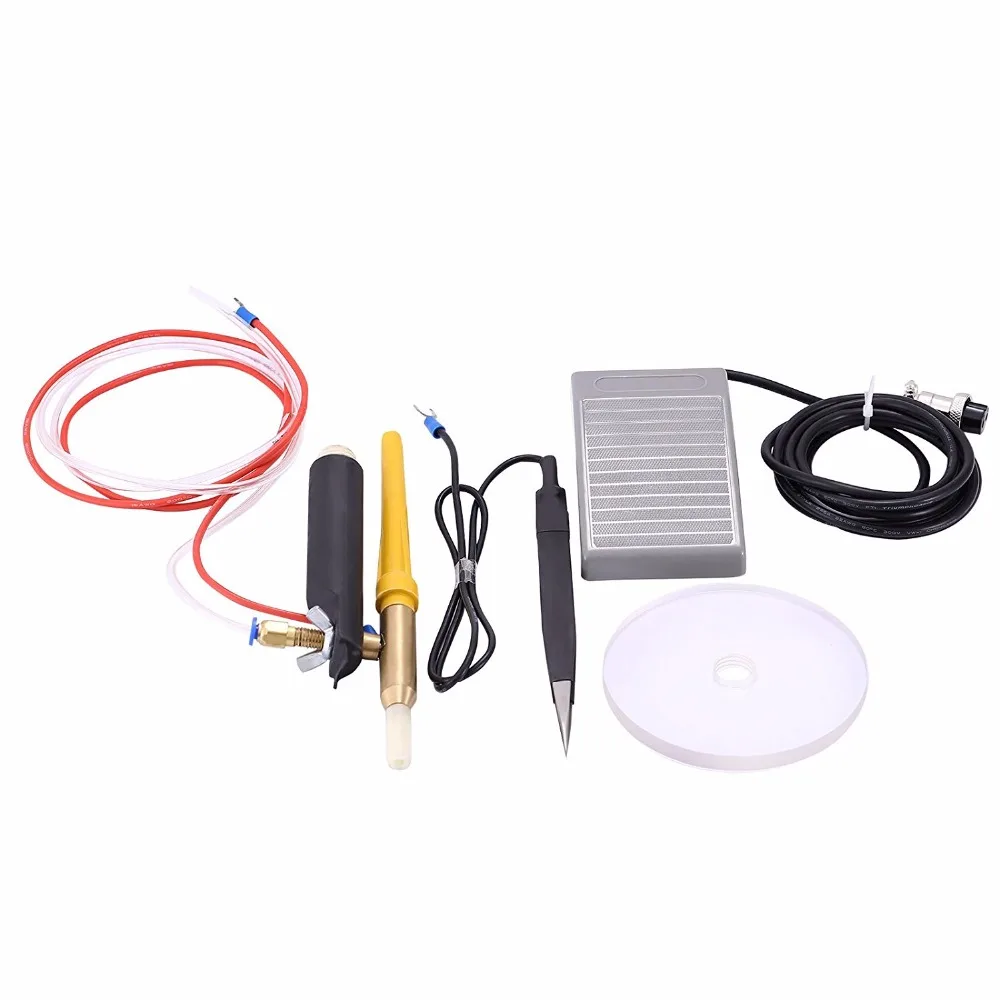

Foot Pedal 1PC
Forceps Clamp 1PC
Tungsten Needle 1PC
Power supply: AC 110V 60HZ
Ampere for welding:0.5~50A, Continuous adjustable (Fluctuation)
Weight: approx 6kg

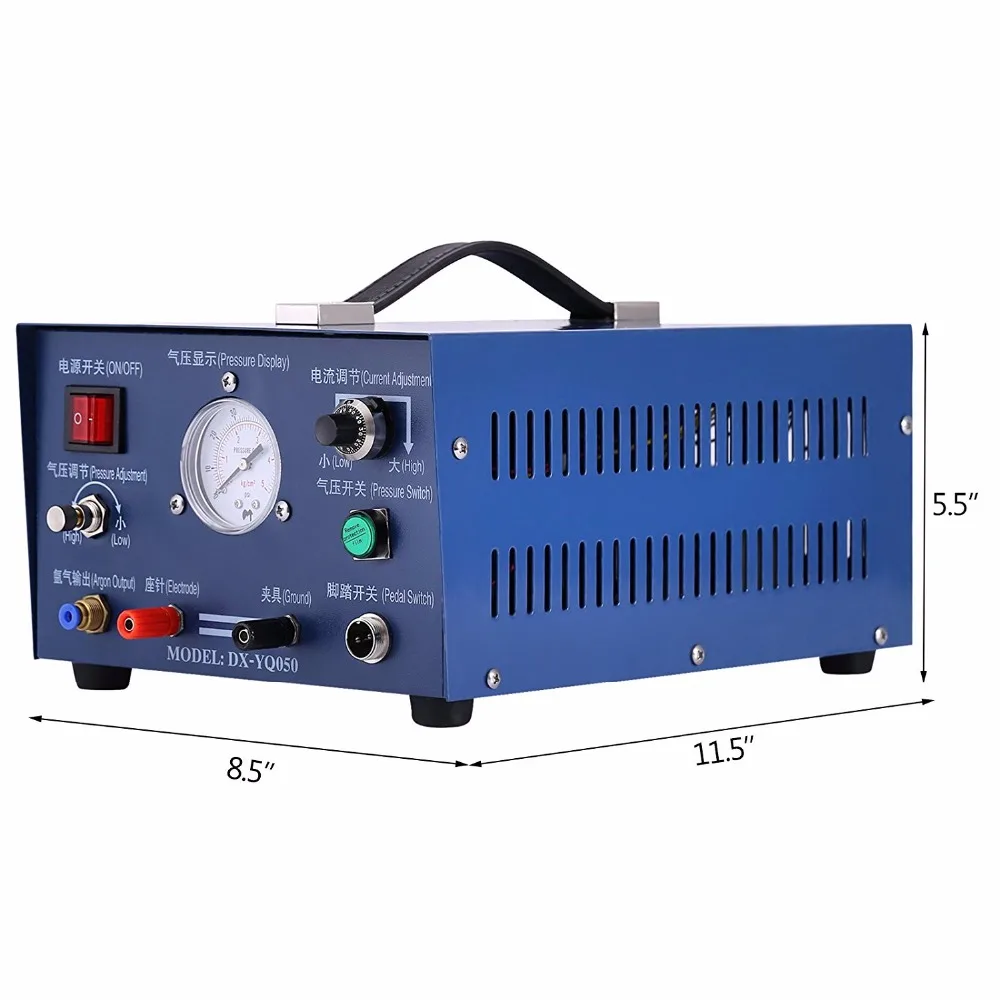

Size:300mm x 215mm x 140mm
Do not step on the pedal for a long time, just step it 1 time then move off immediately. Long time stepping on the pedal, the machine will be short circuit, even to burn out inside electricity
This machine is precision equipment, please cherish it.
Spark light during the welding is harmful to the eyes, please make sure good protection measures.
When you step pedal, do not touch needles or soldering metal.
Please do not disassemble the unit without professional guidance.
