PHYHOO Electric Jewelry Rolling Mill Machine | Combination Flat & Wire Groove Small & Large

PHYHOO Electric Jewelry Rolling Mill Machine — Flat & Wire Groove Combination for Jewelers

Manually cranking a rolling mill through repeated passes is slow, inconsistent, and exhausting. The PHYHOO Electric Jewelry Rolling Mill replaces hand effort with a 1HP motor and multi-speed knob control — delivering uniform sheet thickness, consistent wire gauges, and precise texture transfers with every pass.

• 1HP Electric Motor — knob-controlled multi-speed, no manual effort required
• Combination Flat & Wire Groove Rollers — sheet rolling, wire drawing, and texture transfer in one machine
• Stainless Alloy Rolls — high wear resistance for long service life

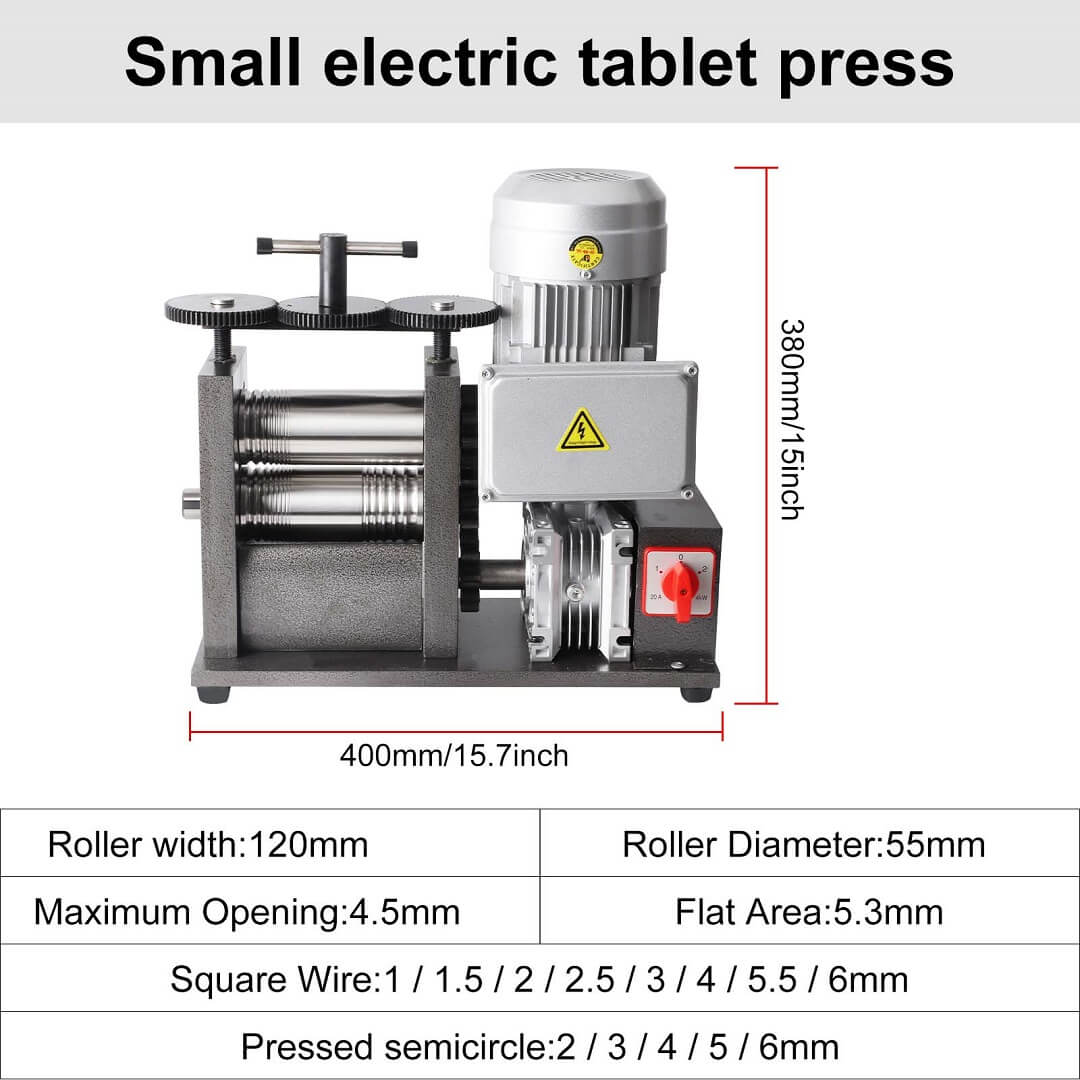

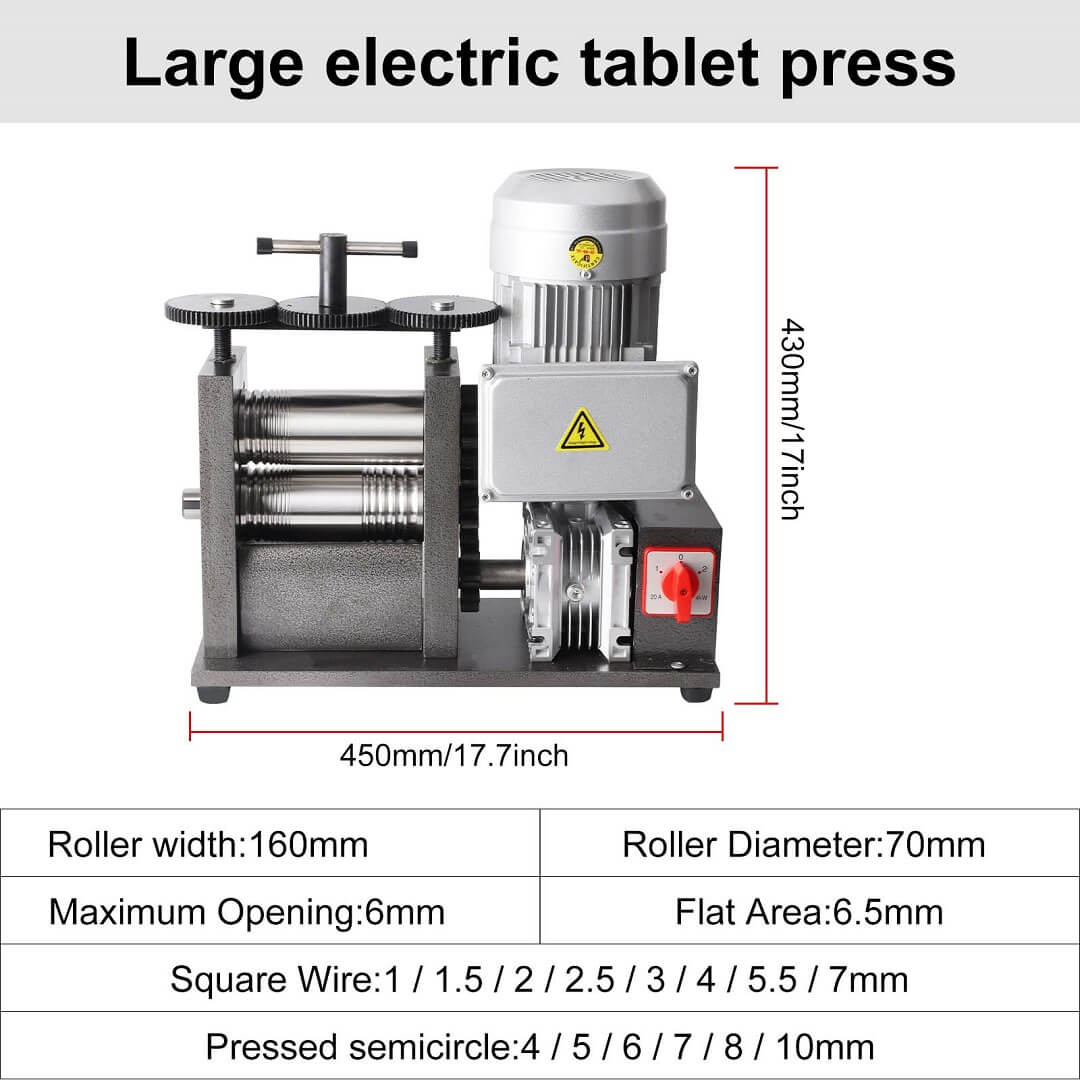

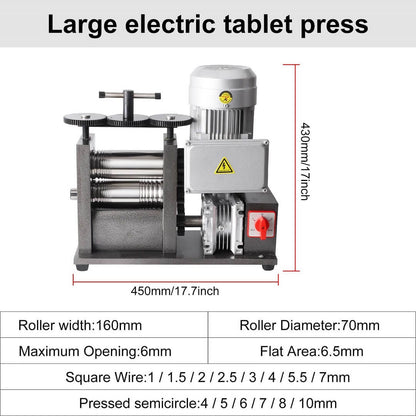

• Two Sizes Available — Small (120mm roller) and Large (160mm roller) to match your workload

Key Features

• 1HP Electric Motor with Knob Control: Multi-gear speed adjustment eliminates manual cranking — consistent rolling force across every pass without operator fatigue
• Combination Flat & Wire Groove Rollers: Flat area for sheet metal rolling and texture transfer; multiple square groove and semicircle groove sizes for wire drawing and shaping

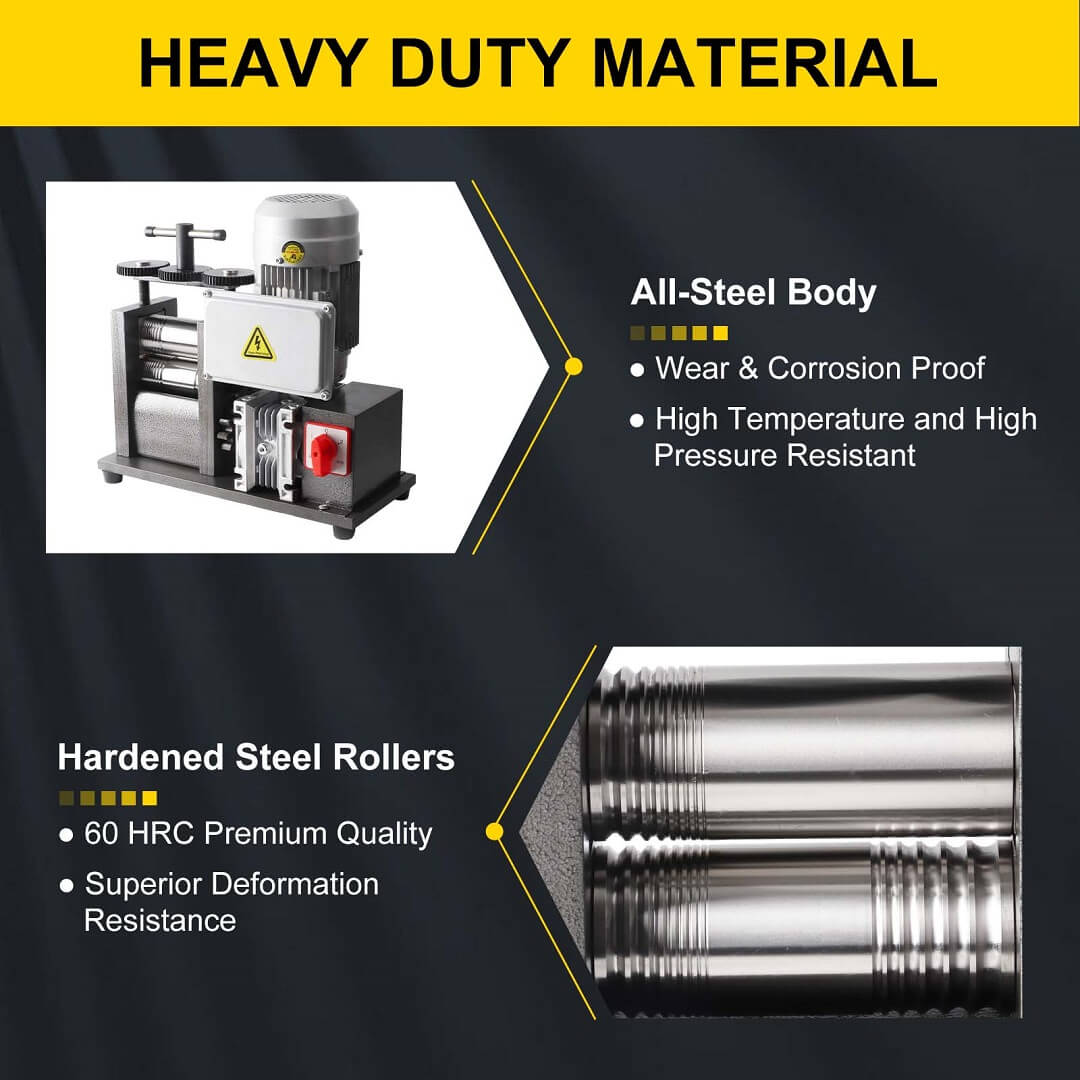

• Stainless Alloy Rolls: High hardness, excellent wear resistance — maintains precision tolerances over years of professional use
• Adjustable Maximum Opening: Small: up to 4.5mm / Large: up to 6mm — accommodates a wide range of starting stock thicknesses
• Robust Construction: Reasonable structure with long service life and precision workmanship for stable, repeatable results
• Dual Voltage (110V / 220V): Compatible with workshops worldwide — no converter required

Ideal Applications

• Cold rolling sheet metal to thinner, uniform gauges
• Drawing and shaping wire to precise dimensions
• Transferring textures to sheet metal
• Flattening and work-hardening precious metals
• Professional jewelry studios, metalsmiths, and craft workshops

What’s in the Box

• 1× Electric Jewelry Rolling Mill Machine (Small or Large — per selected variant)

Technical Specifications

Safety & Maintenance

• Keep hands and loose clothing clear of the rollers during operation
• Never exceed the maximum opening specification for the material being rolled
• Apply light machine oil to roller bearings and adjustment screws periodically
• Disconnect power before cleaning or performing any maintenance
• Ensure the machine is placed on a stable, level bench surface rated for the machine weight
• Allow the motor to cool between extended rolling sessions

Warranty: 1-Year Manufacturer Warranty included with every unit.
